Wattstopper TS-400-24-I
WattStopper TS-400-24-I Digital Low Voltage Time Switch, 1/5/10/20/30/60 min Setting, 24 VDC, 1NO Contact, 1 Poles
Industrial Fixtures (Fluorescent and LED)
7139252
TS-400-24-I
Wattstopper
$0.00
/ ea
- Amperage Rating: 12/41
- Coil Voltage: 24
- Contact Form: 1NO
- Dimensions: 2.66 in L x 1.79 in W x 1.76 in H
- Display Type: LCD
- Electrical Connections: Flying Lead
- Enclosure Type: Plastic
- Mounting Type: Surface
- Number of Poles: 1
- Series: TS-400
- Temperature Rating: 32 to 131
- Time Setting: 1/5/10/20/30/60
- Type: Digital Low Voltage
- Voltage Rating: 24

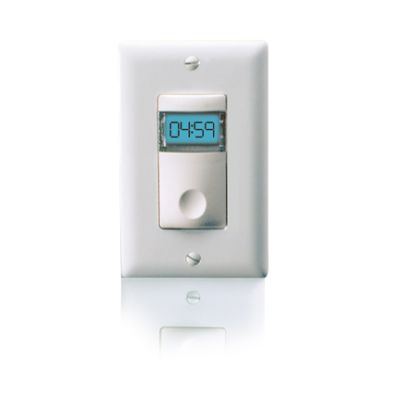

The InteliSwitch TS-400 series digital time switches automatically turn lights off after a preset time. (ivory, 24 volts)
- Features
- Automatically turns lights off after preset time
- Bright electroluminescent LCD shows timer's countdown
- Terminal style wiring for simplified installation
- Digital operation and simple pushbutton setup
- Time scroll features allows timer to adjust up or down
- 24 VAC/VDC half wave rectified input, current draw is 12 mA DC, 41 mA AC
- Preset countdown
- 0 to 800 W rating
- Normally open contact configuration
- 95% RH, non-condensing, for indoor use only
- 1 x 107 operating cycles
- Ivory wall plate
